One device does not appear bound even though connection light is green

Summary

Having both devices' Select Switch in the same position can confuse the system, affect your scans, prevent you from binding your devices properly, or prevent the system from staying bound.

The Select Switch has two settings Main (the device intended for the left, indicated by yellow sticker) and Aux (intended for the right). This article will show you how to adjust your Select Switches for the FlexVision and ScanVision.

Tools you will need

  • Your devices
  • A paperclip

Note Before You Begin

  • The Select Switches should be in opposite positions on each scanner

1. ScanVision

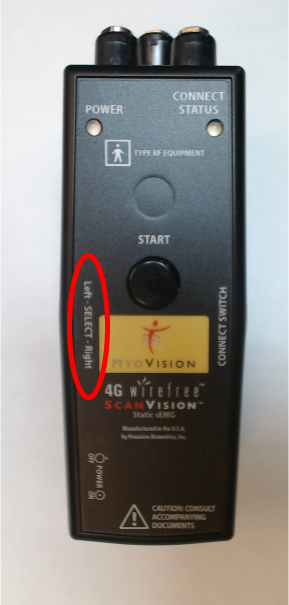

The Select Switch is located on the left side of the scanner in between the power indicator light and the power switch.

1.1 Main/Left

Hold the scanner with the yellow sticker and toggle the Select Switch towards the electrodes. This will designate the scanner as Main/Left. This is the up position. Use a paperclip to move the switch.

Note: If neither of your devices has a yellow dot, pick one to be Main/Left and mark the device to avoid mix ups in the future.

1.2 Aux/Right

Hold the scanner without the yellow sticker and toggle the Select Switch away from the electrodes. This will designate the scanner as Aux/Right. This is the down position. Use a paperclip to move the switch.

1.3 Power Cycle

Turn the devices off and then back on using the Power Switch

1.4 Rebind

Open your MyoVision software and try the binding process for your SoloVisoin or PhysioMonitor

2. FlexVision

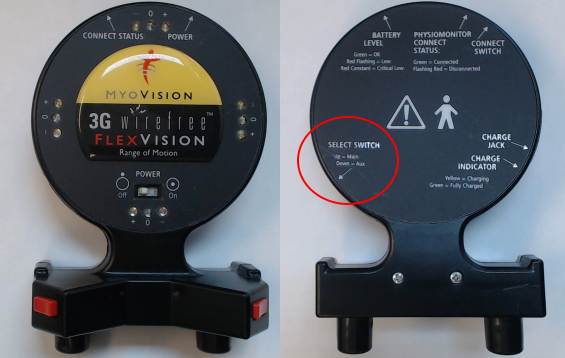

Hold the FlexVision so that the Power switch is facing you, shown in the left picture. Now turn the device over so you are looking at the back, shown in the right picture. The Select Switch is located on the bottom left side, when looking at the back

Note the text that denotes which direction is Main and Aux

2.1 Main

Hold the FlexVision with the yellow sticker and toggle the Select Switch towards the top of the device. This will designate the scanner as Main. This is the up position. Use a paperclip to move the switch

Note: If neither of your devices has a yellow dot, simply pick one to be the “Main” (left) and “Aux” (right) device. But make sure there’s a signifier on the device, so that you do not mix up which one is the left or right device.

2.2 Aux

Hold the FlexVision without the yellow sticker and toggle the Select Switch towards the bottom of the device. This will designate the scanner as Main. This is the down position. Use a paperclip to move the switch

2.3 Power Cycle

Turn the devices off and then back on using the Power Switch

2.4 Rebind

Open your MyoVision software and try the binding process for your SoloVisoin or PhysioMonitor
