Summary
This document shows you how to configure your MyoVision software for use with a SERIES-5 MyoVision system.
Before you Begin
- Make sure your computer is updated to Windows 11. You can check if your computer has Windows 11 here: https://www.microsoft.com/en-us/windows/get-windows-11?r=1
How to Configure MyoVision Software for SERIES-5
1. Use App Setup to Configure your software

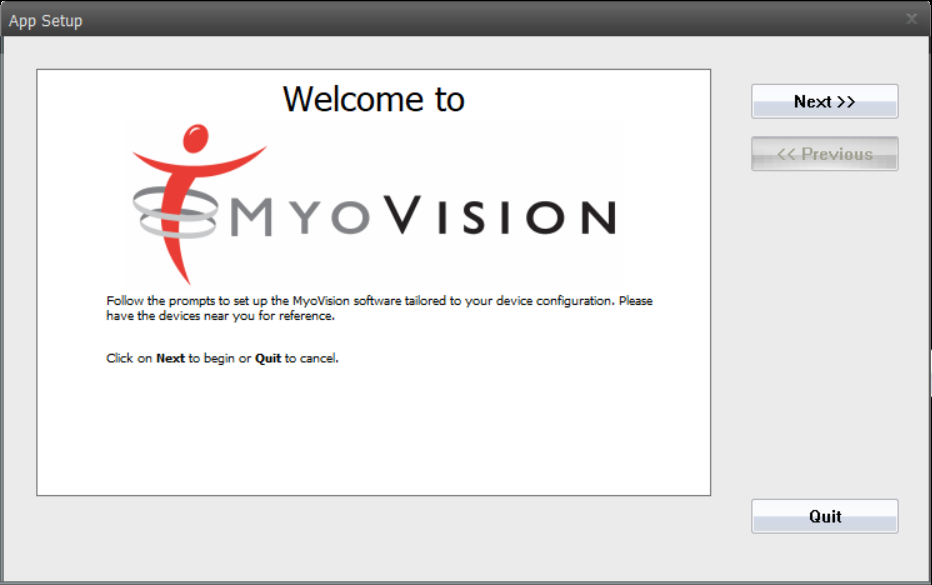

- In the MyoVision Software, go to Help > App Setup. The following window should appear:
- Click Next to begin setup and move through each selection window

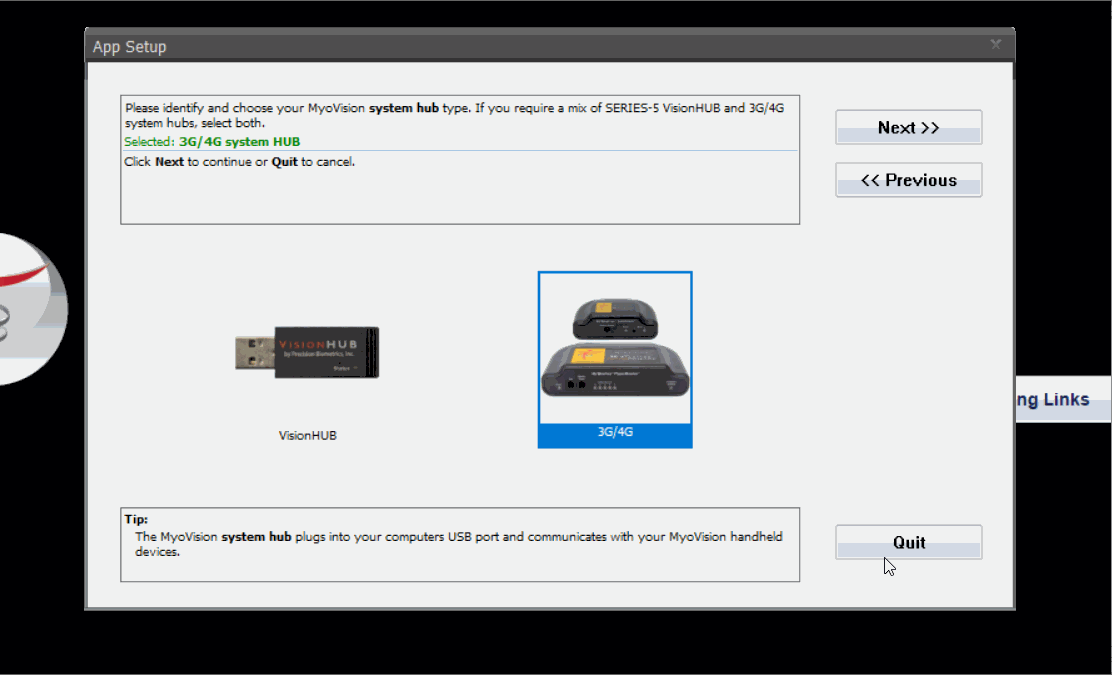

- Select the VisionHUB option and deselect the 3G/4G option by clicking on it before clicking "Next".
- If one or more of your devices (other than Thermography) still use the 3G/4G hardware, then leave the 3G/4G option selected and the software will prompt to choose the specific system hub for each device type.
- Thermography device settings are stored separately and are not affected by the system hub setup
- If one or more of your devices (other than Thermography) still use the 3G/4G hardware, then leave the 3G/4G option selected and the software will prompt to choose the specific system hub for each device type.
- Choose your devices accordingly.
- If you are unsure whether you will be using 1 or 2 ScanVision, choose the option for "One Scanner". You can always go back and change the settings later. See our support article; Configuring Your MyoVision Software for Single or Dual Scanners
- When finished, click 'Done'. Your software is now configured!
